Container Dimensions

Container Dimensions

20' DC

20' DC	Width	Length	Height	Volume	Curb Weight	Payload Capacity
	2.35 m	5.90 m	2.37 m	33 m³	2,300 kg	21,770 kg

40' DC

40' DC	Width	Length	Height	Volume	Curb Weight	Payload Capacity
	2.35 m	11.98 m	2.35 m	66 m³	3,700 kg	26,780 kg

40' HC

40' HC	Width	Length	Height	Volume	Curb Weight	Payload Capacity
	2.35 m	11.98 m	2.69 m	76 m³	3,970 kg	26,780 kg

45' HC

45' HC	Width	Length	Height	Volume	Curb Weight	Payload Capacity
	2.35 m	13.50 m	2.69 m	86 m³	4,590 kg	27,900 kg

20' Open Top

20' OPEN TOP	Width	Length	Height	Volume	Curb Weight	Payload Capacity
	2.35 m	5.89 m	2.35 m	33 m³	2,400 kg	21,600 kg

40' Open Top

40' OPEN TOP	Width	Length	Height	Volume	Curb Weight	Payload Capacity
	2.35 m	11.98 m	2.35 m	66 m³	3,850 kg	26,630 kg

20' Flat Rack

20' FLAT RACK	Width	Length	Height	Curb Weight
	2.20 m	5.60 m	2.20 m	2,530 kg

40' Flat Rack

40' FLAT RACK	Width	Length	Height	Curb Weight
	2.35 m	12.08 m	2.10 m	5,480 kg

20' Reefer

20' REEFER	Width	Length	Height	Volume	Curb Weight	Payload Capacity
	2.23 m	5.42 m	2.26 m	28 m³	3,200 kg	20,800 kg

40' HC Reefer

40' HC REEFER	Width	Length	Height	Volume	Curb Weight	Payload Capacity
	2.29 m	11.56 m	2.50 m	66.6 m³	4,500 kg	25,980 kg

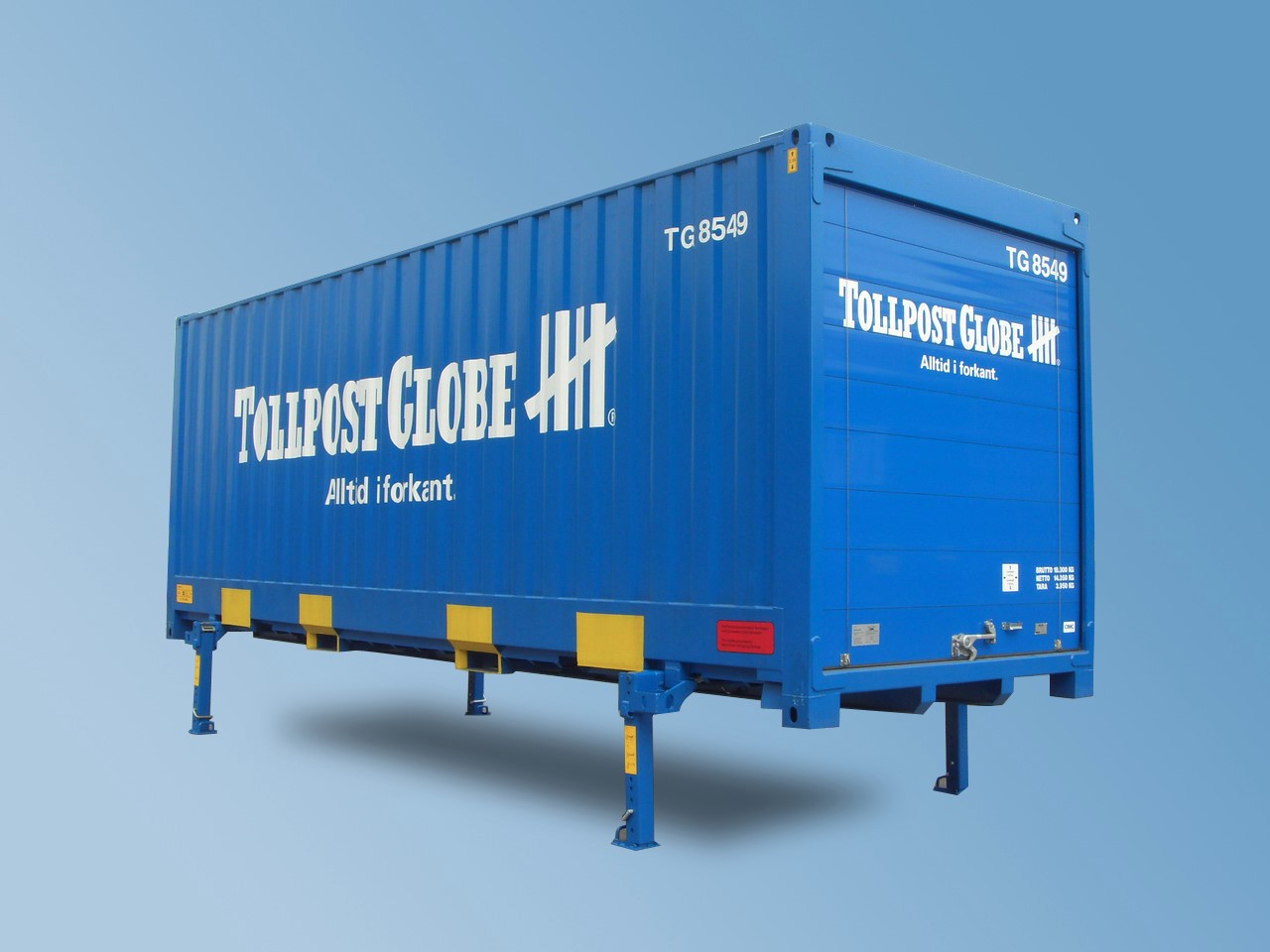

Swap Body

SWAP BODY	Width	Length	Height	Volume	Roof Rise
	2.42 m	13.40 m	2.98 m	96.5 m³	30 cm

20' STANDARD CONTAINER	10 Standard Pallets 1.2x1.0m
20' STANDARD CONTAINER	11 Euro Pallets 1.2x0.8m
40' STANDARD CONTAINER	21 Standard Pallets 1.2x1.0m
40' STANDARD CONTAINER	25 Euro Pallets 1.2x0.8m
40' PALLET-WIDE CONTAINER	24 Standard Pallets 1.2x1.0m
40' PALLET-WIDE CONTAINER	30 Euro Pallets 1.2x0.8m
45' STANDARD CONTAINER	24 Standard Pallets 1.2x1.0m
45' STANDARD CONTAINER	27 Euro Pallets 1.2x0.8m
45' PALLET-WIDE CONTAINER	26 Standard Pallets 1.2x1.0m
45' PALLET-WIDE CONTAINER	33 Euro Pallets 1.2x0.8m
